SOLID Principles: The Software Developer's Framework to Robust & Maintainable Code [with Examples]

This article is part of Solid Book - The Software Design & Architecture Handbook. Get the book.
Last updated Jul 16th, 2019
The SOLID principles are a set of software design principles that teach us how we can structure our functions and classes to be as robust, maintainable and flexible as possible.

This article is part of Solid Book - The Software Design & Architecture Handbook w/ TypeScript + Node.js. Check it out if you like this post.

Writing code can be like pouring concrete.

If what you've written in the past doesn't suit your needs today, it can be expensive to change.

And change is inevitable.

So if we're writing code, we need to write code that can be changed.

That's a lot harder than it sounds.

My initial approach to writing code was that "if I get enough time to do it, I can hack it together and make it work".

I realized that making things work the first time was easy. It's just brute force, really.

But adding features to existing code? Making it work the second time, the third time and the fourth time? Multiple iterations on something can be hard to do without introducing bugs.

I should have changed it to "if I get enough time to do it, I can hack it together and make anything work [once]".

In 180k-line JavaScript projects, I found it hard to iterate fast. Iterations and incremental improvements are what agile is all about.

Eventually, I got tired of pushing out bugs to users and getting stuck in messes that I made myself. I realized something needed to change.

I started learning TypeScript and studying software design.

When we first start out coding, we often have little regard for software design.

Why should we? After we achieve dexterity with a programming language, we focus our efforts on fighting undefined errors, what this means and several other annoying things.

Not to mention, it's pretty challenging to enter the JavaScript world these days.

JavaScript developers have a lot on their plates to figure out as is (browsers, transpilation, build tools, and now TypeScript).

The learning roadmap for JavaScript developers can be a lot less streamlined than it can be for Java and C# developers.

So today, I'm here to bring awareness on the subject of design to JavaScript developers who won't tolerate the thought of writing another flimsy Node.js backend.

We've all done it, and it hurts... slowly.

In order to go fast, we need to go well

I think the answer is Uncle Bob's SOLID Principles.

What are the SOLID Principles?

The SOLID principles are a set of software design principles that teach us how we can structure our functions and classes in order to be as robust, maintainable and flexible as possible.

Quick history

The SOLID principles are a mnemonic acronym that were popularized by Robert C. Martin (Uncle Bob) in 2004-ish. They stand for:

  1. S: Single Responsibility Principle
  2. O: Open-Closed Principle
  3. L: Liskov-Substitution Principle
  4. I: Interface Segregation Principle
  5. D: Dependency Inversion Principle

Primary benefits

If you ask me, the primary benefits of becoming well acquainted with the SOLID principles are that you'll learn how to:

  • write code that's testable
  • write code that's easily understood
  • write code where things are where they're expected to be
  • write code where classes narrowly do what they were intended to do
  • write code that can be adjusted and extended quickly
  • write code that can be adjusted and extended quickly without producing bugs
  • write code that separates the policy (rules) from the details (implementation)
  • write code that allows for implementations to be swapped out (think swapping out Email APIs, ORMs or web server frameworks)

So let's go through em!

S: Single Responsibilty Principle

"A class or function should only have one reason to change."

So, instead of thinking that we should split code up because it would look cleaner in a single file, we split code up based on the social structure of the users using it. Because that's what really dictates change.

If we had an HR department, an Accounting department and an IT department in an enterprise application that calculates pay, and reports and saves hours, we'd better make sure that we've split up (or abstracted) the operations most likely to change for each each department.

Here's an SRP violation:

class Employee {
  public calculatePay (): number {
    // implement algorithm for hr, accounting and it
  public reportHours (): number {
    // implement algorithm for hr, accounting and it

  public save (): Promise<any> {
    // implement algorithm for hr, accounting and it

This is bad, very bad. The algorithm for each department is located in the same class. If one department were to request a change to one of their respective algorithms, it has the increased potential to ripple into another department's algorithm.

Making this work would require some nasty if or switch statements.

Design Tip: If we see lots of code in switch statements, that should be a signal to us of a potential refactoring from a switch statement to several classes.

abstract class Employee {
  // This needs to be implemented
  abstract calculatePay (): number;
  // This needs to be implemented
  abstract reportHours (): number;
  // let's assume THIS is going to be the
  // same algorithm for each employee- it can
  // be shared here.
  protected save (): Promise<any> {
    // common save algorithm

class HR extends Employee {
  calculatePay (): number {
    // implement own algorithm
  reportHours (): number {
    // implement own algorithm

class Accounting extends Employee {
  calculatePay (): number {
    // implement own algorithm
  reportHours (): number {
    // implement own algorithm


class IT extends Employee {

Much better. Each employee in this social structure has a single place where we can go to in order adjust their respective algorithm that is most likely to change.

The key thing is to separate responsibility based on the social structure of the users using the application.

Open-Closed Principle

Intially written about by Bertrand Meyer in the 1980s, Uncle Bob calls this the "most important principle of object-oriented design".

"A software artifact should be open for extension but closed for modification.”

Generally, this principle is all about writing your code in such a way so that when you need to add new functionality, it shouldn't require changing the existing code.

That's what we strive for in software architecture 😤. Being able to design your software so that the minimum amount of code needs to change in order to take it from point A to point B.

To do this, we write interfaces and abstract classes in order to dictate the higher-level policy that needs to be implemented, and then we implement that policy using concrete classes.

Email service example

Let's say that our boss told us that he wanted us to use SendGrid for sending emails.

So we went and coded out a concrete SendGridService class, connecting to the Sendgrid API.

class SendGridService {
  constructor (sendgridInstance) { = sendgridInstance;

  sendMail (from, to, body) {
    // format the mail object to the sendgrid api shape
    // send it
    // create a result object
    // return the result (success, failure, bounded, etc)

3 months later he tells us that he wants us to use MailChimp instead because SendGrid is too expensive.

So we go and code a concrete MailChimpService. But in order to hook it up, we're going to have to change and potentially break a lot of code.

How could we have designed that better?

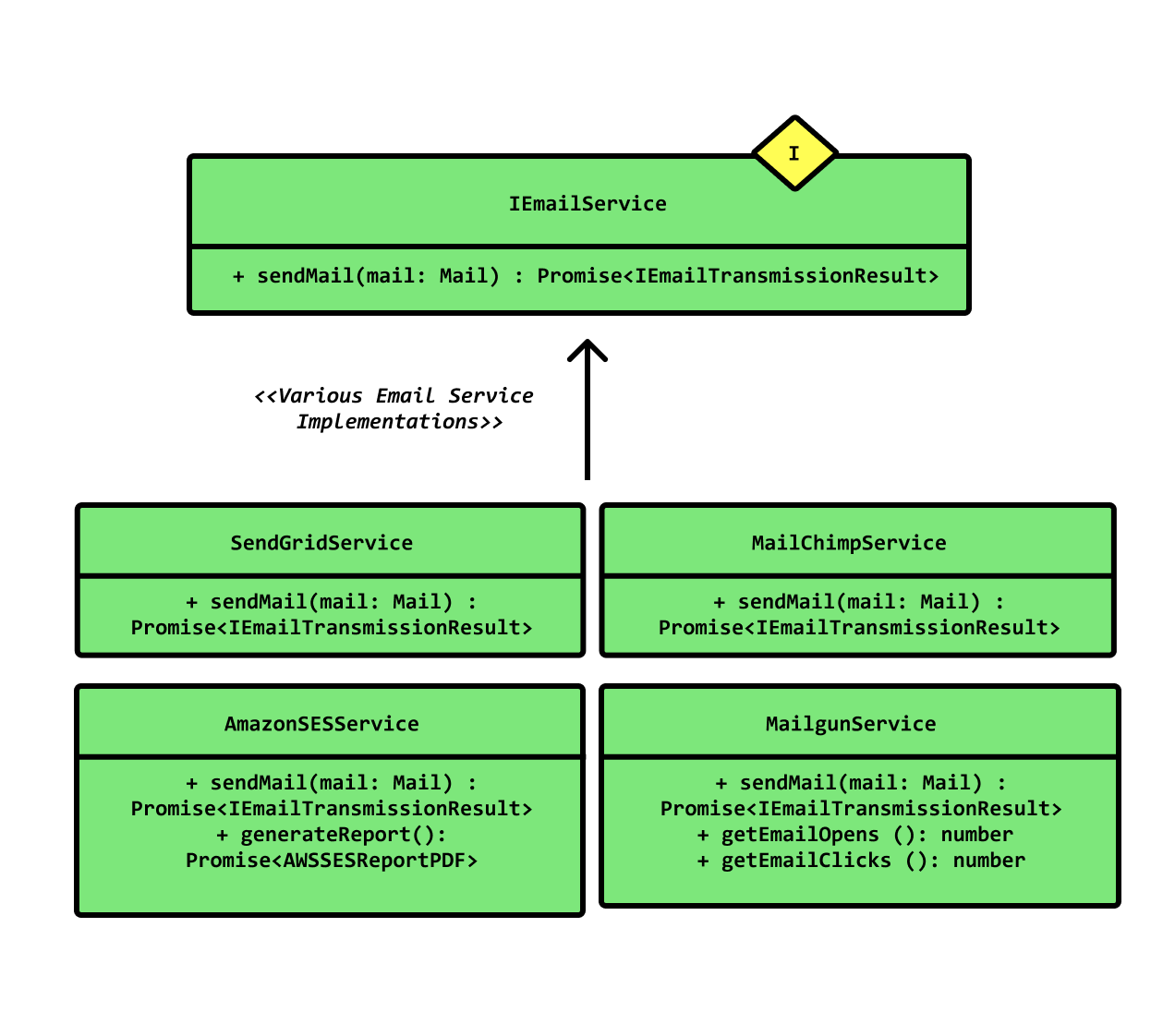

Following OCP, we could define an interface that specifies what a mail service can do, and leave the actual implementation to be figured out separately.

The main idea is to keep the policy separate from the detail in order to enable loose coupling.

Higher level-components are protected from changes to lower level components.

This goes hand-in-hand with the Dependency Inversion Principle of depending on an interface instead of concretions, and closely with Liskov Substitution Principle in terms of being able to swap out implementations as long as the same type/interface is being depended on.

From an architectural standpoint

This principle still makes a lot of sense when we think about the larger picture of software architecture.

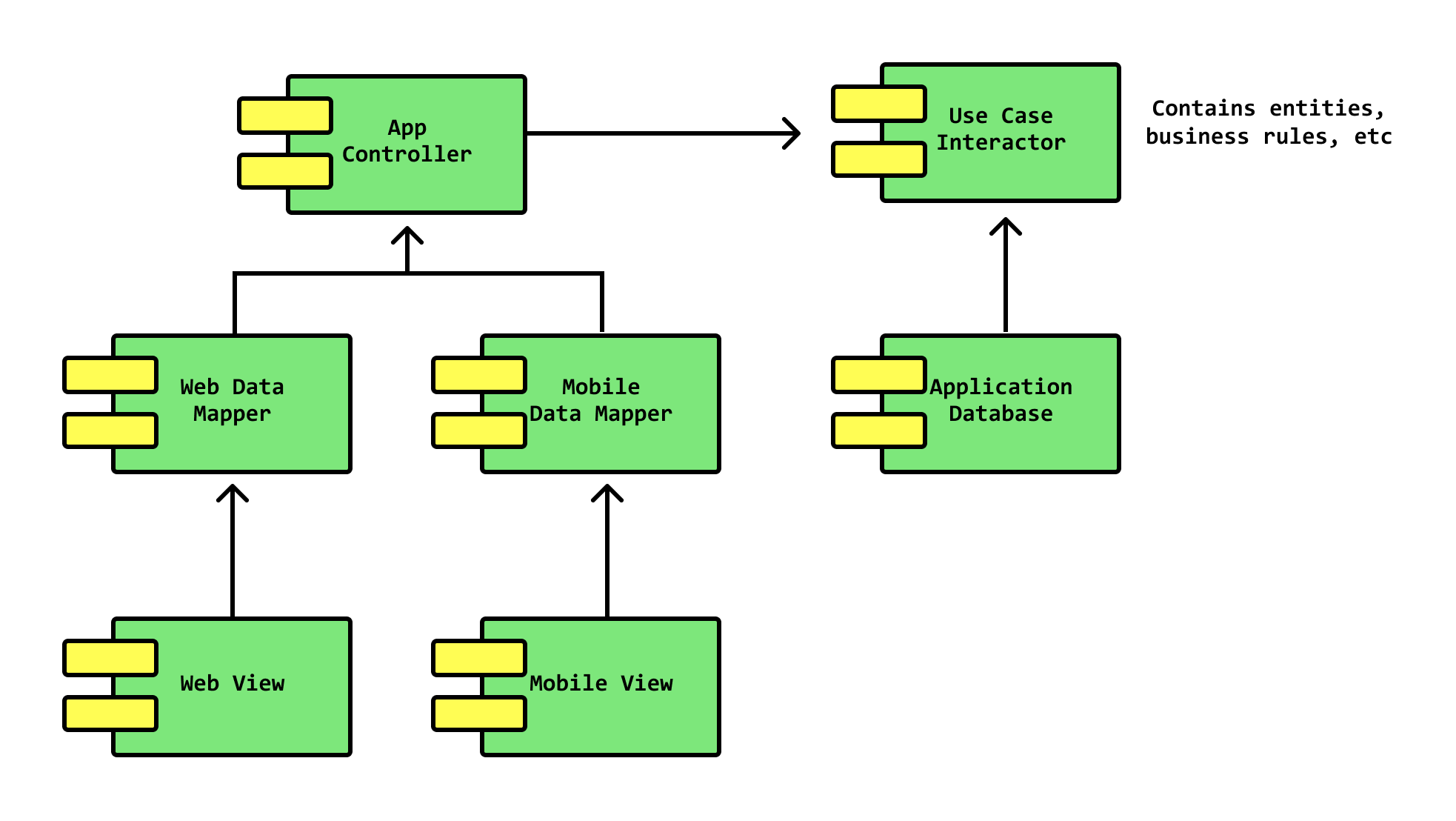

Imagine that this is some generic app where there's a controller that handles requests, passes it off to Use Case (something that actually executes the business logic) and then maps the response into two different views for a Web App and a Mobile App.

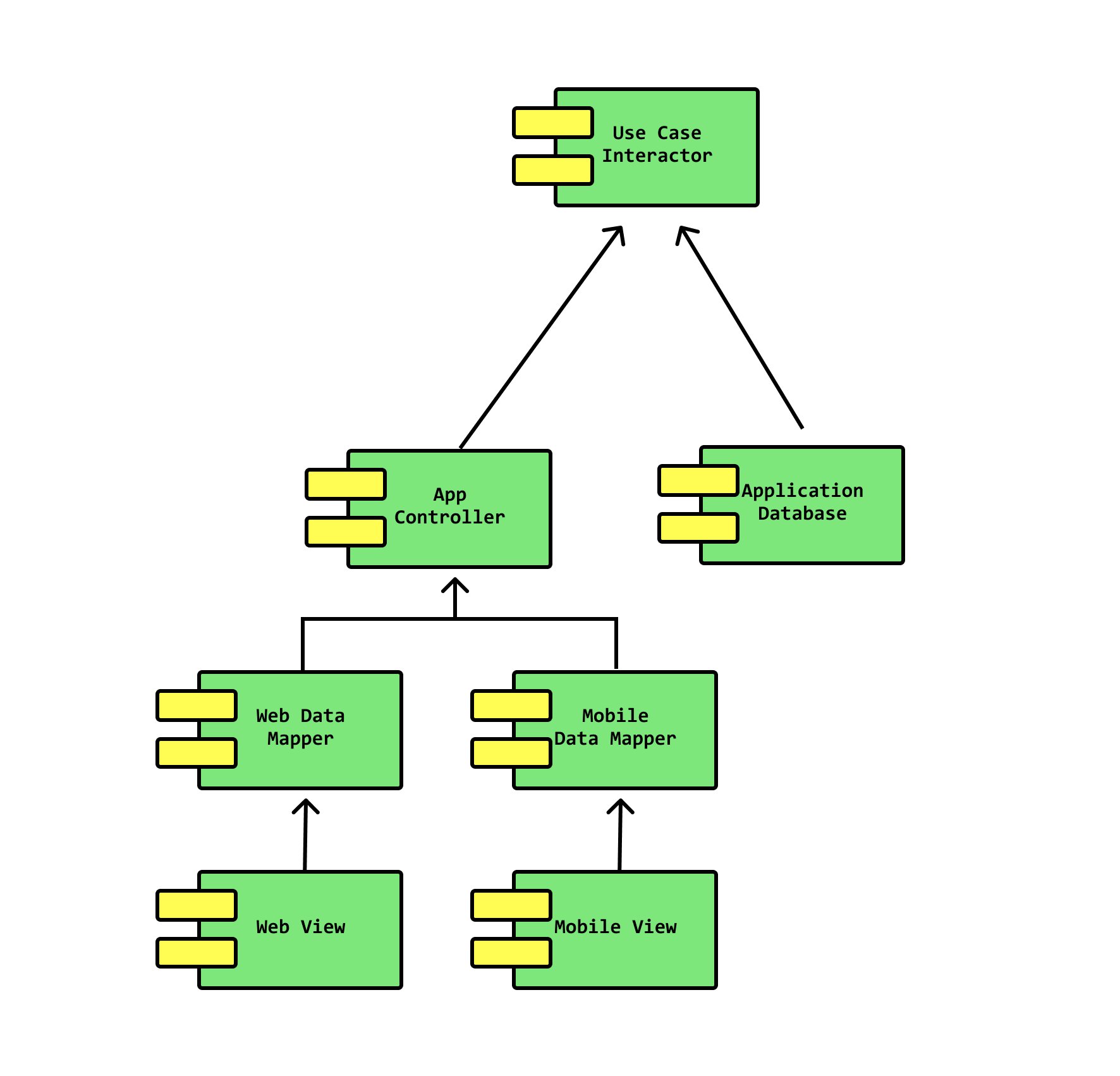

What's the higher-level component?

It's the Use Case!

If the Use Case were to change, it would likely affect the database, the controller and the data mappers which create views passed to web and mobile.

But if the Web or Mobile View were to change, it's a lot less likely that that requirement will translate into something that affects the Use Case because the Use Case contains the business logic and the entities.


Higher level-components are protected from changes to lower level components.

Liskov-Substition Principle

Introduced by Barbara Liskov in the 1980s, she said:

Let Φ(x) be a property provable about objects x of type T. Then Φ(y) should be true for objects y of type S where S is a subtype of T.

Admittedly, that's pretty confusing.

The easiest way to explain it is that we should be able to swap one implementation for another.

In Uncle Bob's "Clean Architecture", he says:

"To build software systems from interchangeable parts, those parts must adhere to a contract that allows those parts to be substituted one for another."

He's talking about using interfaces and abstract classes.

I think the Mail example we gave a moment ago is the best way to think about this.

Since we've defined an IMailService interface:

type TransmissionResult = 'Success' | 'Failure' | 'Bounced'

interface IEmailTransmissionResult {
  result: TransmissionResult;
  message?: string;

interface IMailService {
  sendMail(email: IMail): Promise<IEmailTransmissionResult>

We can implement various email services, as long as they implement the IMailService interface and the required sendMail(email: Mail) method.

class SendGridEmailService implements IMailService {
  sendMail(email: IMail): Promise<IEmailTransmissionResult> {
    // algorithm

class MailChimpEmailService implements IMailService {
  sendMail(email: IMail): Promise<IEmailTransmissionResult> {
    // algorithm

class MailGunEmailService implements IMailService {
  sendMail(email: IMail): Promise<IEmailTransmissionResult> {
    // algorithm

And then we can "Dependency Inject" it into our classes, making sure we refer to the interface it belongs to rather than one of the concrete implementations.

class CreateUserController extends BaseController {
  private emailService: IEmailService;
  constructor (emailService: IEmailService) { // like this 😇
    this.emailService = emailService;

  protected executeImpl (): void {
    // handle request
    // send mail
    const mail = new Mail(...)

Now, all of these are valid.

const mailGunService = new MailGunEmailService();
const mailchimpService = new MailChimpEmailService();
const sendgridService = new SendGridEmailService();

// any of these are valid
const createUserController = new CreateUserController(mailGunService);
// or
const createUserController = new CreateUserController(mailchimpService);
// or
const createUserController = new CreateUserController(sendgridService);

Because we can interchange which implementation of an IEmailService we pass in, we're adhering to LSP.

Interface Segregation Principle

Prevent classes from relying on things that they dont need

In order to prevent this, we should make sure to really split up the unique functionality into interfaces.

Ie: we "segregate the interfaces".

And we should be depending only on interfaces or abstract classes as per the the Dependency Inversion Principle.

Here's a famous example.

The 3 user operations example

Let's say we have 3 different User classes, that use 3 different methods on the same Operations class, and for each User class, we're depending on 2 additional operations that we don't need.

For this, it might not seem like a big deal. But it could be a big deal if the constructor for the Operations class required us to inject all different kinds of dependencies in order to satisfy the other 2 operations that we didn't need.

class Operations implements U1Ops, U2Ops, U3Ops {
  constructor (
    userRepo: IUserRepo,
    emailService: IEmailService,
    authService: IAuthService,
    redisService: IRedisService,
    ... // and more


That's when it's really a blaring no-no.

This does occasionally end up with services in CRUD-first design, but to fix it, we can start by making sure that we rely on abstractions to the things that we need.

Like this...

And then, if it were cumbersome to create the Operations class because it depended on so many things, taking User1 for example, we would be able to create a class that ONLY implements U1Ops.

class User1Operations implements U1Ops {
  constructor (userRepo: IUserRepo) {

Now User1 only needs User1Operations and not all the other junk from Operations.

Dependency Inversion Principle

Abstractions should not depend on details. Details should depend on abstractions.

What's an abstraction again? An interface or abstract class.

What's a detail again? A concrete class.

Abstractions should never depend on details. Ok, so that means, try not to do this:

interface IMailService {
  // refering to concrete "PrettyEmail" and "ShortEmailTransmissionResult" from an abstraction
  sendMail(email: PrettyEmail): Promise<ShortEmailTransmissionResult>

But instead, do this.

class SendGridEmailService implements IMailService {
  // concrete class relies on abstractions
  sendMail(email: IMail): Promise<IEmailTransmissionResult> {

You can normally tell when I'm using an interface (at least in my code) from the Microsoft code style, which recommends that we prefix interfaces with an "I".

And this is already what you've beeing seeing throughout this article so far! We've been referring to abstractions (interfaces and abstract classes) instead of concrete ones.

Main components / detail components

We can't never reference concrete classes. That's how we actually hook things up to get stuff to happen.

Like hooking up an express.js router.

// user/http/router/index.js
import * as express from 'express'
import { Router } from 'express'
import { CreateUserController } from '../controllers'
import { MailGunEmailService } from '../services'

const mailGunService = new MailGunEmailService();
const createUserController = new CreateUserController(mailGunService);

const userRouter = Router();'/new', (req, res) => createUserController.exec(req, res))

export {

We need to reference those concrete CreateUserController and MailGunEmailService classes in order to hook them up.

But we only do this to hook them up. Uncle Bob calls these Main components. They're messy but they're necessary.

However, we shouldn't refer to concrete classes from another concrete class directly.

This is what gives us the ability to test code, because we leave the power to the implementor to pass in a mocked dependency if we don't want to make API calls or rely on something we're not currently interested in testing.

Therefore, do this.

class CreateUserController extends BaseController {
  private emailService: IEmailService; // <- abstraction
  constructor (emailService: IEmailService) { // <- abstraction
    this.emailService = emailService;

  protected executeImpl (): void {
    // handle request
    // send mail
    const mail = new Mail(...)

Not this.

class CreateUserController extends BaseController {
  // we're limiting ourselves to a particlar concrete class.
  private emailService: SendGridService; // <- concretion
  constructor (emailService: SendGridService) { // <- concretion
    this.emailService = emailService;

  protected executeImpl (): void {
    // handle request
    // send mail
    const mail = new Mail(...)

And definitely not this.

import { SendGridService } from '../../services'; // <- source code dependency

class CreateUserController extends BaseController {
  // impossible to mock for tests
  private emailService: SendGridService = new SendGridService(); // <- concretion
  constructor () {

  protected executeImpl (): void {
    // handle request
    // send mail
    const mail = new Mail(...)

Dependency Injection Frameworks

If hooking up dependencies to classes like this gets out of hand where there are potentially hundreds of dependencies, we can look to a Dependency Injection Framework to help resolve dependencies auto-magically.

Although I haven't tried it, Inversify seems to be the most popular one at the moment.

More on Dependency Inversion

If you're interested in a deeper dive, check out the wiki page on this principle.


We just went through all of the SOLID principles.

If you're using TypeScript, for you to really get the most out of your object-oriented software design efforts, I recommend re-reading this article a few times and referring back to it as you write TypeScript code, asking yourself "is this SOLID"?

And if you're interested in having something you can download, I'm putting together an ebook (that's free before its release) on applying the SOLID principles in Node.js and TypeScript.

Definitely grab that if you're interested in having something you can print out.

SOLID JavaScript?

Wow, we really talked a lot about interfaces, didn't we?

And you know what the sad part is?

Interfaces don't exist in JavaScript 😔

Which makes all of this a whole lot harder to adhere to.

That doesn't mean it's impossible to write SOLID JavaScript, it means that it will take a considerably increased amount of both discipline and attention to detail on our side. That's largely because we don't have the compiler on our side.


There's definitely a thing as too SOLID. Writing clean code like this does increase the amount of files you introduce because you're writing abstractions for your concretions.

If you're confident you'll never need to abstract something, consider making that trade-off for something more concrete-y.

Additional reading

  • "Clean Architecture" by Uncle Bob

Examples of SOLID code

If you're interested in seeing some SOLID code, particularly the Email example, check out this repo.

If you're reading this and have really good repos of SOLID TypeScript or JavaScript code that you'd like to share, reach out on Twitter and I'll include it.


Liked this? Sing it loud and proud 👨‍🎤.


Commenting has been disabled for now. To ask questions and discuss this post, join the community.

Juan Carlos Chinahuanca
3 years ago

thanks for the detail in the explanation, as you mention it is important to reread this article

3 years ago

I bookmarked this article, its like a reference/cheat sheet to me now. I wish all software developers/programmers understand this principles early in their career but I guess until we hit our head on a rock its just not possible to get the logic behind it.

After a lot of procedural programming I am now moving towards object oriented and this article is a huge time saver for me.

Thank you

Khalil Stemmler
3 years ago

Wow, thanks! I'm going to spend some more time soon to make this article better. I realize the examples could be a little more practical. Thanks for reading the blog, Jack!

David A
3 years ago

This was great, thanks for posting!

Thiago de Bastos
3 years ago

Hi Khalil! I just wanted to let you know that your blog has been an invaluable source of learning for me and I am keenly awaiting the release of your upcoming DDD with TS course! Keep it up mate, you're adding so much value to the community!

2 years ago

This is fantastic. Having searched the internet for good practical examples of SOLID Design Principles using TypeScript, I have to say this is the best.

2 years ago

I think this only article that i found with all principles and explained so well.

Helped me a lot to understand as a beginner. And repo is cool!!

Chris L
a year ago

This is one of the best introductions and explanations of SOLID that I've come across. Well done!

a year ago

I didn't understand a part when you recommended the use of DI framework, but you had not tried it.

8 months ago

Great article, thanks!

Blake Browns
8 months ago

I might want to prompt you resume service here - as I would see it, this is the most solid and qualified web-based assistance for purchasing a resume. Here, qualified staff will adapt without issues in the most limited conceivable time, which will save your time

7 months ago

Great post sir.

Which software do you to make diagram ?

6 months ago

Another option is to use a card reader to connect your calculator's memory card to the computer and copy the history file from there. Finally, some calculators have an infrared port that can be used to transmit data to another device like a cell phone or laptop. If your calculator has this feature, you can use an infrared transmission app on another device to receive the history file.

Angelita Henry
5 months ago

SOLID is the answer. SOLID is a set of principles that help you write maintainable and robust code. These principles are based on years of experience in the software industry. When you follow these principles, your code will be easy to read, understand, and modify.

4 months ago

I am very glad to read this informative article.

Stay in touch!

About the author

Khalil Stemmler,
Software Essentialist ⚡

I'm Khalil. I turn code-first developers into confident crafters without having to buy, read & digest hundreds of complex programming books. Using Software Essentialism, my philosophy of software design, I coach developers through boredom, imposter syndrome, and a lack of direction to master software design and architecture. Mastery though, is not the end goal. It is merely a step towards your Inward Pull.

View more in Software Design

You may also enjoy...

A few more related articles

Domain Knowledge & Interpretation of the Single Responsibility Principle | SOLID Node.js + TypeScript
The Single Responsibility Principle specifies that a class or function should only have one reason to change. Admittedly, that's n...
How I Write Testable Code | Khalil's Simple Methodology
The single biggest thing that improved the quality of my designs was understanding how dependencies influence my ability to write ...
How to Learn Software Design and Architecture | The Full-stack Software Design & Architecture Map
Software Design and Architecture is pretty much its own field of study within the realm of computing, like DevOps or UX Design. He...
UML Cheatsheet | Class Diagram Resource
Here's a handy-dandy UML cheatsheet.

Want to be notified when new content comes out?

Join 15000+ other Software Essentialists learning how to master The Essentials of software design and architecture.

Get updates
